Articulated Forklift 1500-3000kg VNA Truck Quad Mast
Epexlift articulated forklift trucks combine the advantages of counterbalance forklifts and narrow-aisle forklifts, making them suitable for both outdoor operation with an enhanced driving experience and indoor use in tight spaces.
- Brand：EPEXLIFT
- Model: E-NA15,E-NA20,E-NA25,E-NA30
- Load Capacity: 1500kgs, 2000kgs, 2500kgs,3000kg
- Lift Height: 4300mm-15000mm
About US
Epexlift is dedicated to being your most trusted partner in intelligent logistics and material handling. Guided by our core promise of “Simplifying Your Move,” we deliver reliable and efficient forklift solutions that make every material handling task both effortless and productive. Our comprehensive equipment portfolio spans Class I to Class V, offering a full selection from electric forklifts, pallet trucks, and order pickers, Very Narrow Aisle trucks,multidirection forklifts along with robust LPG and diesel models for demanding outdoor applications—ensuring we can meet virtually any operational requirement.
Contact US
Email：sales@epexlift.com
Phone：+86135 1497 1047
WhatsApp：+86135 1497 1047
Get A Quick Requests Now
HICODA will constantly satisfy worldwide customers with professional warehouse solutions, and we are ready to be your trusted partner.
Contact Us
-
Phone:+86135 1497 1047
-
E-mail: sales@epexlift.com
Description

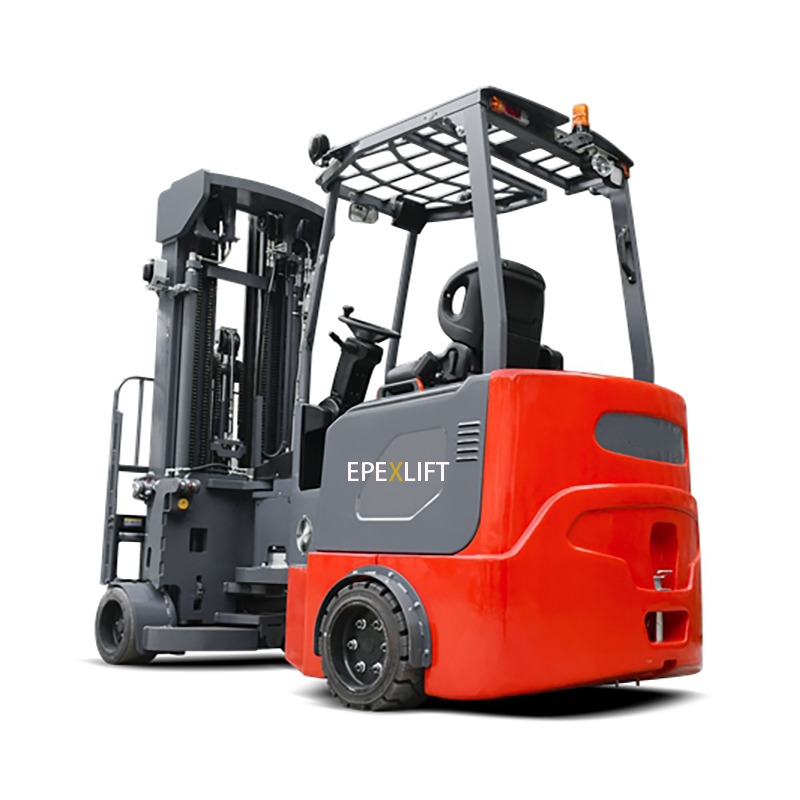

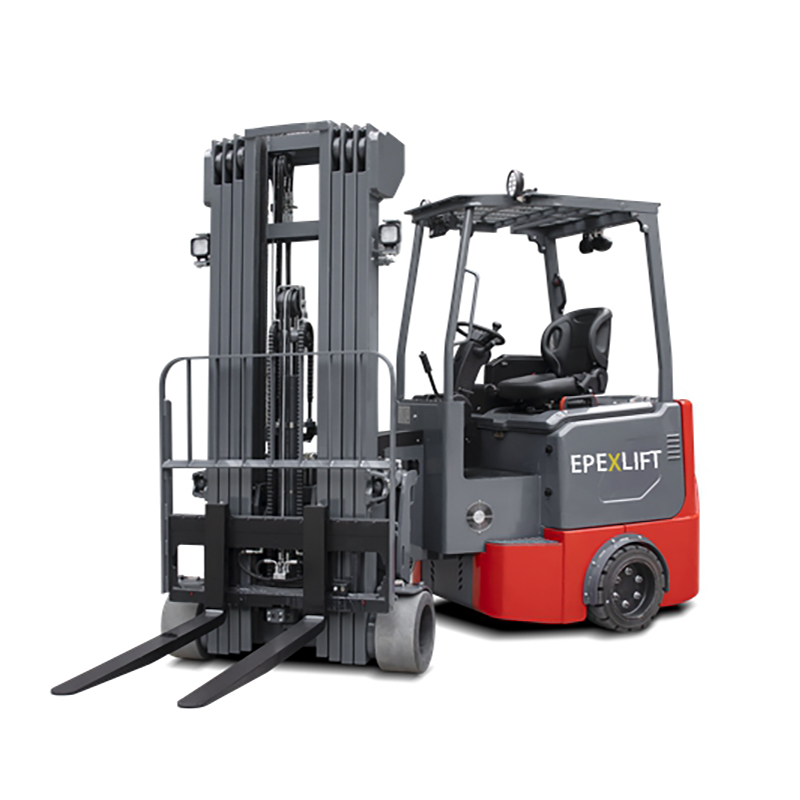

Electric Articulated Forklift VNA 1500~3000kgs Quad Mast
Epexlift articulated forklift trucks combine the advantages of counterbalance forklifts and narrow-aisle forklifts, making them suitable for both outdoor operation with an enhanced driving experience and indoor use in tight spaces. Articulated forklifts feature a mast that articulates, allowing it to rotate up to 210 degrees and reach a lifting height of up to 15 meters. Forklift articulated trucks are ideally suited for high-density stacking in high-rack warehouses.
Brand: Epexlift
Model: E-NA15,E-NA20,E-NA25,E-NA30
Load Capacity: 1500kgs, 2000kgs, 2500kgs,3000kg
Lift Height: 4300mm-15000mm
| 1 | Manufacturer | EPEXLIFT | ||
| 2 | Model | E-MJD25 | ||
| 3 | Power type | Battery | ||
| 4 | Driving style | Seated | ||
| 5 | Rated load | Q(kg) /lbs | 2500 /5511 | |
| 6 | Load center | C(mm) /inch | 600 /23.6 | |
| 7 | Front overhang | x(mm) /inch | 310 /12.2 | |
| 8 | Wheelbase | y(mm) /inch | 1815 /71.5 | |
| 9 | Service Weight(incl.battery) | kg /lbs | 8220 /18122 | |
| 10 | wheel type | Solid rubber tires | ||
| 11 | Load wheel size | mm | φ365×200 | |
| 12 | Drive wheel size | mm | 18×9×12.125 | |
| 13 | Number of wheels,front/rear(x=drive wheel) | 2x/2 | ||
| 14 | Wheel base,drive side | b10(mm) | 1190/46.85 | |
| 15 | Wheel base, load-bearing side | b11(mm) | 1100/43.3 | |
| 16 | Mast tilt angle | α/β(°) | 1/3 | |
| 17 | Mast rotation angle | (°) | 180° | |
| 18 | Mast closed height | h1(mm) /inch | 2795 /110 | |
| 19 | Free lift height | h2(mm) /inch | 1621 / 63.8 | |
| 20 | Lift height | h3(mm) /inch | 8000 / 315 | |
| 21 | Height of mast open | h4(mm) /inch | 9219 / 363 | |
| 22 | Overhead guard height | h6(mm) /inch | 2260 /88.97 | |
| 23 | Seat height | h7(mm) /inch | 1250 /49.2 | |
| 24 | Towing hook height | h10(mm) /inch | 290 / 11.4 | |
| 25 | Overall length | L1(mm) /inch | 4042 /159 | |
| 26 | Length to fork face | L2(mm) /inch | 2942 /115.8 | |
| 27 | Overall width | b1/b2(mm) /inch | 1300/1420 51.2/56 | |
| 28 | Fork size | l/e/s(mm) /inch | 1100/100/50 43.3/3.9/2 | |
| 29 | Installation level | Ⅱ | ||
| 30 | Fork rack width | b3(mm) /inch | 1100 /43.3 | |
| 31 | Fork outside width | b5(mm) | 1050～220 | |
| 32 | Side shifting distance | mm /inch | ±143 / 5.6 | |
| 33 | Mast ground clearance | m1(mm) /inch | 70 /2.7 | |
| 34 | Body ground clearance | m2(mm) /inch | 110 / 4.3 | |
| 35 | min Stacking aisle width(pallet 1000×1200 depth,load center is 500mm) | Ast(mm) /inch | 1700 /67 | |
| 36 | min Stacking aisle width(pallet 800×1200 depth,load center is 600mm) | Ast(mm) /inch | 2000 /78.7 | |
| 37 | Turning radius | Wa(mm) /inch | 2115 /83.3 | |
| 38 | Driving speed, load/unloaded | km/h mph | 13/14 8.06/8.75 | |
| 39 | Lifting speed,load/unloaded | mm/s inch/s | 450/570 17.7/22.44 | |
| 40 | Lowering speed,load/unload | mm/s inch/s | 400/450 15.7/17.7 | |
| 41 | Maximum traction,load/unload | N | 21000 | |
| 42 | Maximum climbing capacity,full loaded/no loaded | %(tanθ ) | 15/15 | |
| 43 | Braking mode | Mechanical hydraulic | ||
| 44 | Drive motor power (S2-60min) | kw | AC7.5×2 | |
| 45 | Lift motor power, (S3-15%) | kw | AC21 | |
| 46 | Hydraulic system pressure | Mpa | 21.5 | |
| 47 | Noise level at the driver’s ear | dB(A) | 70 | |
| 48 | steering system | Hydraulic | ||
