Seated VNA Electric Forklift Pallet Stacker 1600kgs
Epexlift 3-way very narrow aisle (VNA) electric pallet stacker adopts an imported controller, with advanced camera and full AC system, green battery power, and Stacking and handling of goods in dense storage of mid to high level shelves and narrow aisles.
- Brand: Epexlift
- Model: E-MCA
- Load capacity: 1600kgs
- Minimum stacking aisle width: 1.5~1.8m
- Standard lifting height: 3m~12m
- Type: Man-down VNA forklift truck
About US
Epexlift is dedicated to being your most trusted partner in intelligent logistics and material handling. Guided by our core promise of “Simplifying Your Move,” we deliver reliable and efficient forklift solutions that make every material handling task both effortless and productive. Our comprehensive equipment portfolio spans Class I to Class V, offering a full selection from electric forklifts, pallet trucks, and order pickers, Very Narrow Aisle trucks,multidirection forklifts along with robust LPG and diesel models for demanding outdoor applications—ensuring we can meet virtually any operational requirement.
Contact US
Email：sales@epexlift.com
Phone：+86135 1497 1047
WhatsApp：+86135 1497 1047
Get A Quick Requests Now
HICODA will constantly satisfy worldwide customers with professional warehouse solutions, and we are ready to be your trusted partner.
Contact Us
-
Phone:+86135 1497 1047
-
E-mail: sales@epexlift.com
Description
Seated 3-WAY Electric Pallet Stacker 1600kgs
- Brand: Epexlift
- Model: E-MCA
- Load capacity: 1600kgs
- Minimum stacking aisle width: 1.5~1.8m
- Standard lifting height: 3m~12m
- Type: Man-down VNA forklift truck

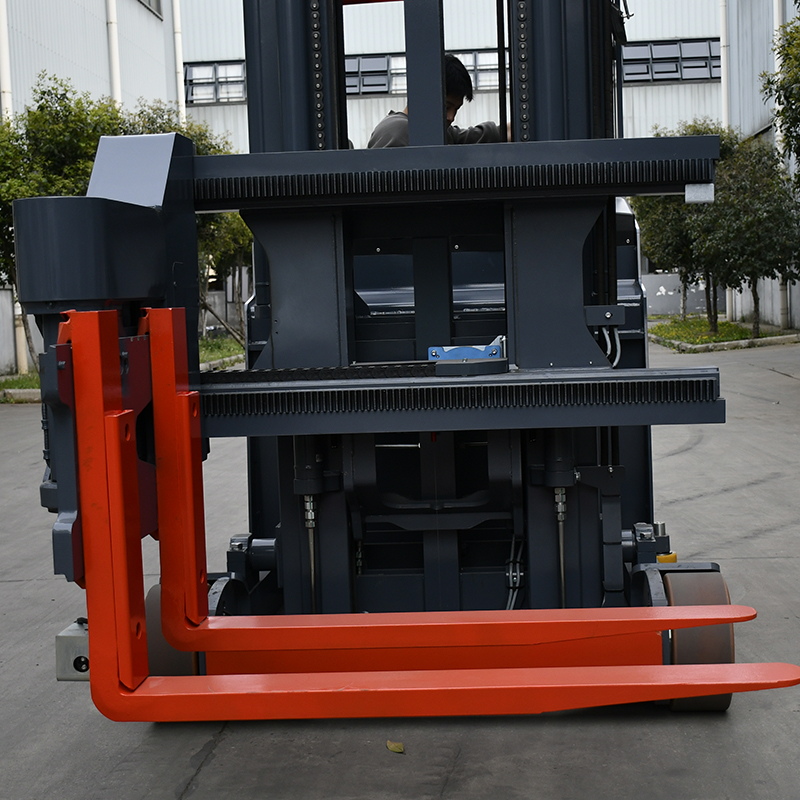

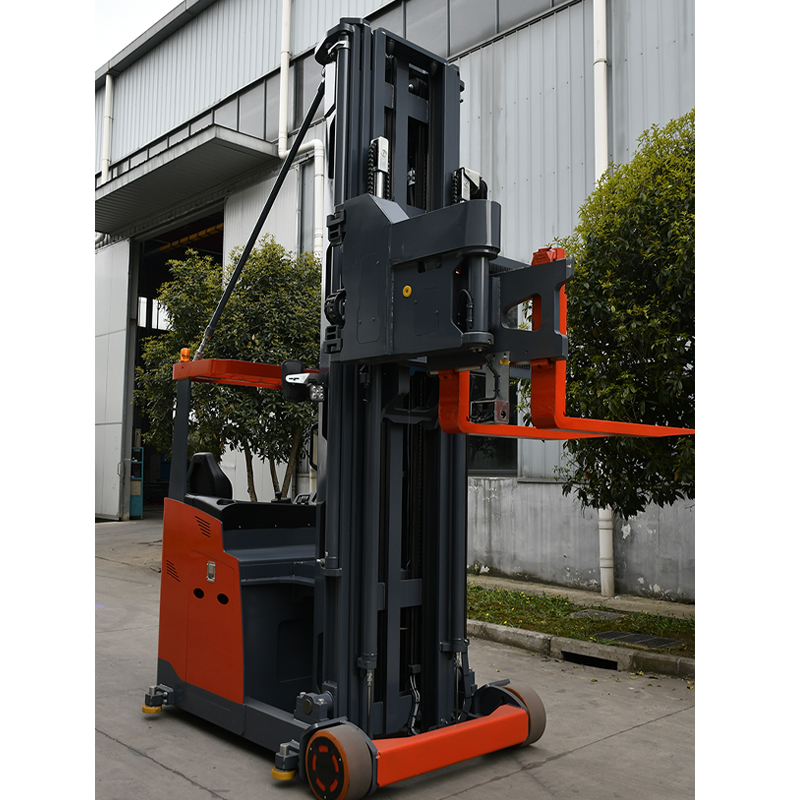

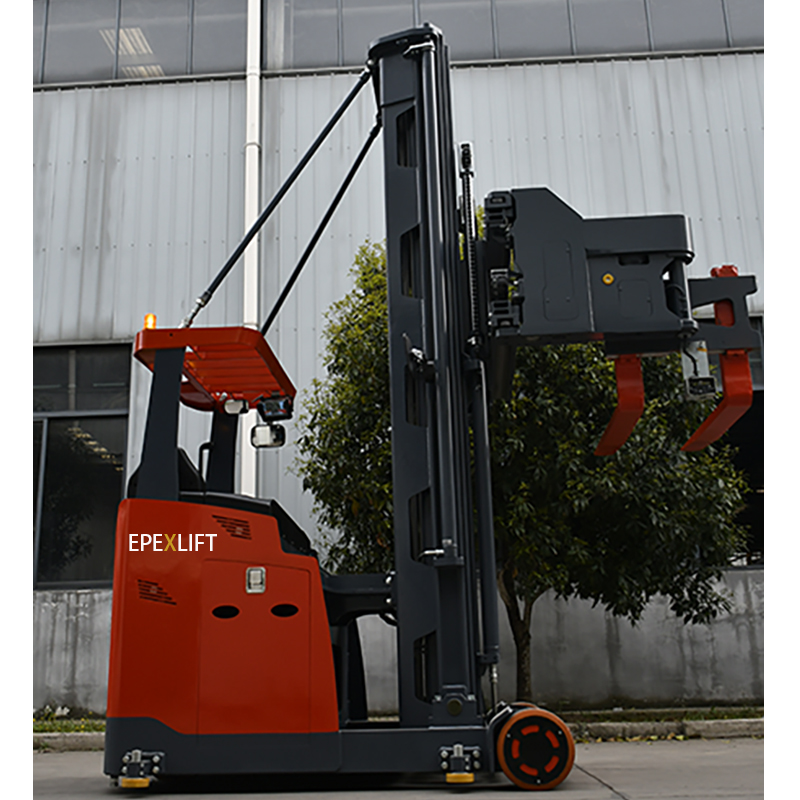

The seated three-way electric VNA forklift truck E-MCA stacker is specifically designed for high-density pallet storage. Epexlift VNA forklift (Very Narrow Aisle forklift) is engineered specifically for high-density warehouse challenges. Its defining feature is the 180-degree rotating fork system, which allows the forks—not the truck—to turn.The Epexlift three way pallet stacker needs only 1600-1800mm aisle width. With an impressive lifting height of up to 12 meters, this high-lift VNA truck is the perfect high-bay storage solution. It unlocks the full potential of your vertical space for dense storage, making it the ideal equipment for warehouse space maximization.
| 1.1 | Manufacturer | EPEXLIFT | |
| Model | E-MCA | ||
| 1.3 | Power type | Battery | |
| 1.4 | Operation | Seated | |
| 1.5 | Load capacity | Q(kg) | 1600 |
| 1.6 | Load center distance | C(mm) | 600 |
| 1.8 | Wheelbase | y(mm) | 1800 |
| 3.1 | Tyre type,front/rear | Polyurethane | |
| 3.2 | Tyre size, front | mm | φ343×150 |
| 3.3 | Tyre size, rear | mm | φ400×160 |
| 3.4 | Wheels,number front/rear (X=driven) | 2 / 1X | |
| 3.5 | Track width, front | b10(mm) | 1315 |
| 4.3 | Lift height | h3(mm) | 3000-12000 |
| 4.5 | Overhead guard height | h6(mm) | 2250 |
| 4.6 | Pedal height | h7(mm) | 620 |
| 4.7 | Overall length | l1(mm) | 3315 |
| 4.8 | Overall width | b1/ b2(mm) | 1290/1470 |
| 4.9 | Fork dimensions | l/e/s(mm) | 1200/125/50 |
| 4.1 | Installation level | II B | |
| 4.11 | Fork carriage width | b3(mm) | 805 |
| 4.12 | Fork outside spread | b5(mm) | 265~765 |
| 4.13 | Width over guide rollers | b6(mm) | 1575 |
| 4.14 | Side shift distance | b7(mm) | 1280 |
| 4.15 | Ground clearance, center of wheelbase, laden | m2(mm) | 80 |
| 4.16 | Stacking aisle width pallet to pallet 1200x1200mm | Ast(mm) | 1600[1] |
| 4.17 | Turning radius | Wa(mm) | 2085 |
| 4.18 | Distance from the fork rotation axis | l8(mm) | 845 |
| 4.19 | Main aisle width with pallet 1200x1200mm | mm | ≥(3800+400)[2] |
| 5.1 | Travelling speed, laden/unladen | km/h | 8/8 |
| 5.2 | Lift speed, laden/unladen | mm/s | 320/320 |
| 5.3 | Lowering speed, laden/unladen | mm/s | 340/340 |
| 5.4 | Gradeability, unladen | %(tanθ ) | 5/8 |
| 5.5 | Service brake | Regenerative brake/hydraulic brake | |
| 5.6 | Parking brake | Electromagnetic brake | |
| 6.1 | Drive motor, rating S2=60 | kw | 8 AC |
| 6.2 | Lift motor, rating S3=15% | kw | 15 AC |
| 6.3 | Lead acid battery, voltage/nominal capacity | V/Ah | 48/600[3] |
| 6.4 | Battery weight | kg | 945 |
| 7.1 | Battery replacement method | Side pull | |
| 7.2 | Steering system | Electric power steering |
