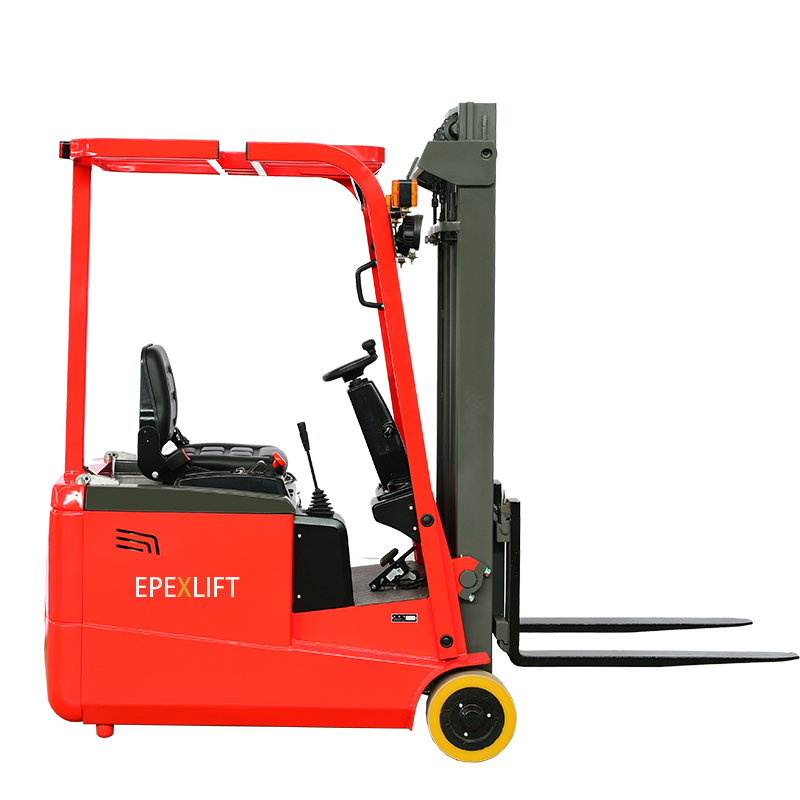

3 -Wheel 1-1.5 tons Electric Mini Counterbalance Forklift Truck
The 3 wheel mini electric forklift E-MKA is engineered for exceptional maneuverability in tight spaces. With a compact body and small turning radius, this three-wheel counterbalance forklift delivers outstanding stability thanks to its triangular support structure. The load capacity is 1000 kgs and 1500kg, ideal for warehouse logistics, light industrial use, and narrow-aisle operations.
- Brand:Epexlift
- Model：E -MKA
- Load capacity: 1000 kg, 1500 kg
- Lifting height: from 2 m to 4.5m
About US
Epexlift is dedicated to being your most trusted partner in intelligent logistics and material handling. Guided by our core promise of “Simplifying Your Move,” we deliver reliable and efficient forklift solutions that make every material handling task both effortless and productive. Our comprehensive equipment portfolio spans Class I to Class V, offering a full selection from electric forklifts, pallet trucks, and order pickers, Very Narrow Aisle trucks,multidirection forklifts along with robust LPG and diesel models for demanding outdoor applications—ensuring we can meet virtually any operational requirement.
Contact US
Email：sales@epexlift.com
Phone：+86135 1497 1047
WhatsApp：+86135 1497 1047
Get A Quick Requests Now
HICODA will constantly satisfy worldwide customers with professional warehouse solutions, and we are ready to be your trusted partner.
Contact Us
-
Phone:+86135 1497 1047
-
E-mail: sales@epexlift.com
Description
3-Wheel Small Electric Forklifts 1-1.5 tons for narrow aisles
Features:
-
Equipped with an advanced controller for precise handling and excellent performance
-
Maintenance-free AC drive motor for reliable, energy-efficient operation
-

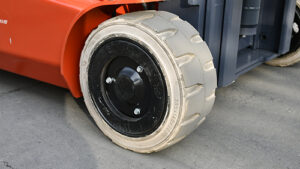

Solid rubber tyres for durability and smooth travel on various surfaces
-
Ultra-small turning radius, specially designed for narrow aisles and confined spaces
-
Wide-view mast design to maximize visibility and operator confidence
-
Low center of gravity for enhanced stability during lifting and cornering
-
Spacious operator compartment with ergonomic layout for fatigue-free work
-
Available in both lead-acid and long-life lithium battery options
-
Comprehensive safety systems ensure all-around protection for the operator and the load
Details:
Parameters:
| Characteristics | 1.1 | Manufacturer | EPEXLIFT | EPEXLIFT | |
| 1.2 | Model | E-MKA10 | E-MKA15 | ||
| 1.3 | Power type | Battery | Battery | ||
| 1.4 | Operation | Seated | Seated | ||
| 1.5 | Load capacity | Q(kg) | 1000 | 1500 | |
| 1.6 | Load center distance | C(mm) | 500 | 500 | |
| Wheels | 3.1 | Tyre type | Polyurethane | Solid rubber/Polyurethane | |
| 3.5 | Wheels,number front/rear (X=driven) | 2 / 1X | 2 / 1X | ||
| Dimensions | 4.1 | Mast tilt angle front/rear | α/β(°) | 2/4 | 2/4 |
| 4.4 | Lift height | h3(mm) | 3000 | 3000 | |
| 4.7 | Overhead guard height | h6(mm) | 1965 | 1965 | |
| 4.19 | Overall length | L1(mm) | 2330 | 2450 | |
| 4.20 | Length to fork face | L2(mm) | 1410 | 1495 | |
| 4.21 | Overall width | b1/b2(mm) | 912 | 1010 | |
| 4.24 | Fork carriage width | b3(mm) | 620 | 680 | |
| 4.25 | Fork outside spread(max-min) | b5(mm) | 620～220 | 680～220 | |
| 4.31 | Ground clearance below mast | m1(mm) | 90 | 70 | |
| 4.32 | Ground clearance,body | m2(mm) | 90 | 85 | |
| 4.35 | Turning radius | Wa(mm) | 1255 | 1325 | |
| 5.8 | Gradeability, laden/unladen | % | 8/10 | 8/10 | |
| Battery | 6.1 | Drive motor, rating S2=60 | kw | AC1.5 | AC2.5 |
| 6.2 | Lift motor, rating S3=15% | kw | DC2 | DC3.5 | |
| 6.4 | Lead acid battery voltage/capacity(standard) | V/Ah | 24/300 | 24/480 |
