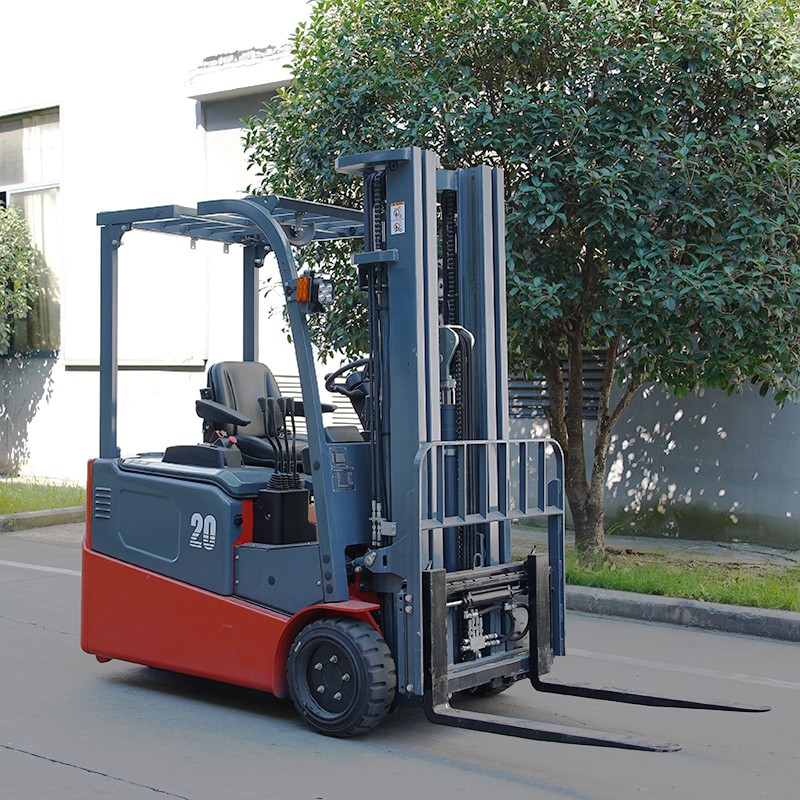

3-Wheel 1.6-2 tons Electric Counterbalance Forklift Trucks
Epexlift MKC 3-wheel counterbalance electric forklift trucks are ideal for container handling and warehouse indoor and outdoor for loading and unloading the cargo. 48V counter balance forklift powered by full AC motors and featuring two front drive wheels. This 1.6-2.0 ton capacity three-wheels battery forklift delivers exceptional maneuverability and reliability. The option of high-capacity lithium or lead-acid batteries ensures an uninterrupted workflow. Experience the perfect blend of power and comfort with the E-MKC counterbalance forklift, designed to provide operators with an enhanced driving experience and meet diverse logistical demands.
- Brand: Epexlift
- Model: E-MKC
- load capacity: 1600 kg, 2000 kg
- lifting height: from 2.5 m to 7.5m
About US
Epexlift is dedicated to being your most trusted partner in intelligent logistics and material handling. Guided by our core promise of “Simplifying Your Move,” we deliver reliable and efficient forklift solutions that make every material handling task both effortless and productive. Our comprehensive equipment portfolio spans Class I to Class V, offering a full selection from electric forklifts, pallet trucks, and order pickers, Very Narrow Aisle trucks,multidirection forklifts along with robust LPG and diesel models for demanding outdoor applications—ensuring we can meet virtually any operational requirement.
Contact US
Email：sales@epexlift.com
Phone：+86135 1497 1047
WhatsApp：+86135 1497 1047
Get A Quick Requests Now
HICODA will constantly satisfy worldwide customers with professional warehouse solutions, and we are ready to be your trusted partner.
Contact Us
-
Phone:+86135 1497 1047
-
E-mail: sales@epexlift.com
Description
Three-Wheel 1.6-2.0 tons Electric Counterbalance Forklifts
Features:
-

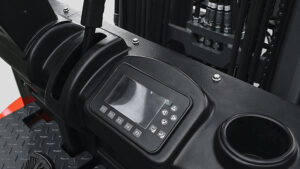

Equipped with an advanced controller for precise handling and excellent performance
-
Full Maintenance-free AC drive motor for reliable, energy-efficient operation
- Double front drive motors offer strong power.
-

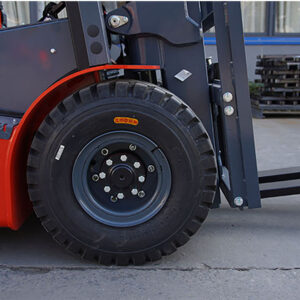

Solid rubber tyres for durability and smooth travel on various surfaces
-
Wide-view mast design to maximize visibility and operator confidence
-
Low center of gravity for enhanced stability during lifting and cornering
-

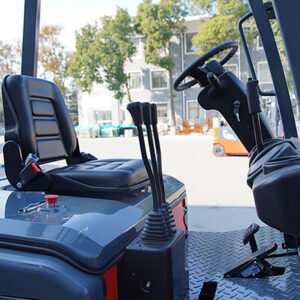

Spacious operator compartment with ergonomic layout for fatigue-free work
-
Available in both lead-acid and long-life lithium battery options
- Especially suitable for cold-storage warehouses using.
Details
Parameters:
| Characteristics | 1.1 | Manufacturer | EPEXLIFT | EPEXLIFT | |
| 1.2 | Model | E-MKC | E-MKC | ||
| 1.3 | Power type | Battery | Battery | ||
| 1.4 | Operation | Seated | Seated | ||
| 1.5 | Load capacity | Q(kg) | 1600 | 2000 | |
| 1.6 | Load center distance | C(mm) | 500 | 500 | |
| Wheel | 3.1 | Tyre type,front/rear | Solid Tyre | Solid Tyre | |
| Dimension | 4.1 | Mast tilt angle front/rear | α/β(°) | 6/6 | 6/6 |
| 4.3 | Free Lift height | h2(mm) | 145 | 150 | |
| 4.4 | Lift height | h3(mm) | 3300 | 3300 | |
| 4.7 | Overhead guard height | h6(mm) | 2105 | 2105 | |
| 4.12 | Towing pin height | h10(mm) | 519 | 519 | |
| 4.19 | Overall length | L1(mm) | 2880 | 2885 | |
| 4.2 | Body to fork surface length | L2(mm) | 1960 | 1965 | |
| 4.21 | Overall width | b1/b2(mm) | 1086/1070 | 1120/1070 | |
| 4.22 | Fork dimensions | l/e/s(mm) | 920/100/35 | 920/100/40 | |
| 4.25 | Fork outside spread (max~min) | b5(mm) | 930~218 | 930~218 | |
| 4.31 | Ground Clearance (Loaded, Center of Mast) | m1(mm) | 105 | 105 | |
| 4.32 | Ground Clearance (Loaded, Center of Wheelbase) | m2(mm) | 100 | 100 | |
| 4.35 | Turning radius | Wa(mm) | 1595 | 1595 | |
| 5.8 | Gradeability, laden/unladen | % | 15/15 | 15/15 | |
| Drive | 6.1 | Drive motor, rating S2=60 | kw | AC4.8×2 | AC4.8×2 |
| 6.2 | Lift motor, rating S3=15% | kw | AC12 | AC12 | |
| 6.4 | Lead-acid battery voltage/nominal capacity (standard) | V/Ah | 48/400 | 48/490 |
