3-Wheel 1.8 tons Electric Counterbalance Forklift Trucks Stand Up Operation
Epexlift E-MN 3-wheel electric stand-on counterbalance forklift is engineered to maximize efficiency in confined indoor spaces. 1800kgs (3500lbs )electric stand-up forklift for narrow aisles . Its innovative three-pivot-point design delivers an exceptionally small turning radius, allowing effortless navigation in Very Narrow Aisles (VNA). Epexlift E-MN counterbalance forklift powered by 48V AC drive system, max up to 6 meters lifting height, integrated handle operation and double drive motor . Lithium-ion forklift / Lead-acid battery forklifts E-MN make the ideal solution for modern, space-constrained distribution centers and warehouses.
- Brand:Epexlift
- Model:E-MN
- Load Capacity: 1800kg
- Max. Lifting Height: 3000- 6200mm
- Operation Type: Stand up
About US
Epexlift is dedicated to being your most trusted partner in intelligent logistics and material handling. Guided by our core promise of “Simplifying Your Move,” we deliver reliable and efficient forklift solutions that make every material handling task both effortless and productive. Our comprehensive equipment portfolio spans Class I to Class V, offering a full selection from electric forklifts, pallet trucks, and order pickers, Very Narrow Aisle trucks,multidirection forklifts along with robust LPG and diesel models for demanding outdoor applications—ensuring we can meet virtually any operational requirement.
Contact US
Email：sales@epexlift.com
Phone：+86135 1497 1047
WhatsApp：+86135 1497 1047
Get A Quick Requests Now
HICODA will constantly satisfy worldwide customers with professional warehouse solutions, and we are ready to be your trusted partner.
Contact Us
-
Phone:+86135 1497 1047
-
E-mail: sales@epexlift.com
Description
Three Wheels StandUp Electric Counterbalance Forklift Trucks 1800kgs Capacity
Features:
-

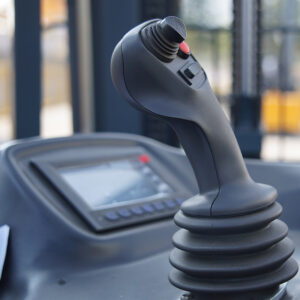

Equipped with an advanced controller for precise handling and excellent performance
-
Full AC drive motor with maintenance-free offers reliable, energy-efficient operation
-

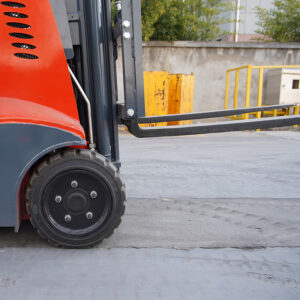

Solid rubber tyres for durability and smooth travel on various surfaces
-
three wheels with a small turning radius, specially designed for narrow aisles.
-

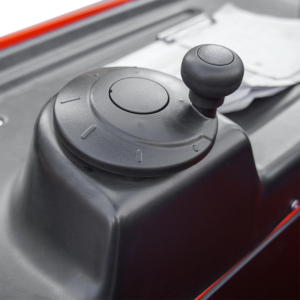

Integrated handle for more precise and convenient operation.
- Option equipped with side shift capability for easier stacking and handling.
-

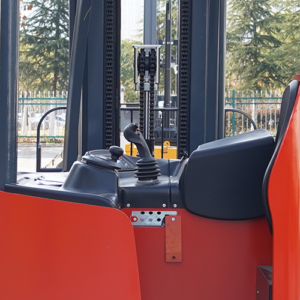

Stand-up operation provides a wider field of view i
-
Available in both lead-acid and long-life lithium battery options
Details :
Parameter :
| 1.1 | Brand | Epexlift | ||
| 1.2 | Model | E-MN18 | ||
| 1.3 | Power type | Battery | ||
| 1.4 | Operation | Stand-on | ||
| 1.5 | Load capacity | Q(kg) | 1800 | |
| 1.6 | Load center distance | C(mm) | 500 | |
| Weight | 2.1 | Service weight (with/without battery) | kg | 4270/3220 |
| Wheels | 3.1 | Tyre type | Solid rubber tyre | |
| 4.7 | Overhead guard height | h6(mm) | 2261 | |
| 4.8 | Seat height | h7(mm) | / | |
| 4.12 | Towing hook height | h10(mm) | / | |
| 4.19 | Overall length | L1(mm) | 2695 | |
| 4.20 | Length to fork face | L2(mm) | 1775 | |
| 4.21 | Overall width | b1/b2(mm) | 1067/1065 | |
| 4.22 | Fork dimensions | l/e/s(mm) | 920/100/35 | |
| Installation level(ISO2328) | 2A | |||
| 4.25 | Fork outside spread(max.- min.) | b5(mm) | 930~218 | |
| 4.31 | Ground clearance (full load, mast center) | m1(mm) | 70 | |
| 4.32 | Ground clearance (wheelbase center) | m2(mm) | 56 | |
| 4.35 | Min. turning radius | Wa(mm) | 1488 | |
| Performance | 5.1 | Travelling speed, laden/unladen | km/h | 12/12 |
| 5.8 | Gradeability, laden/unladen | % | 15/15 | |
| Drive | 6.1 | Drive motor, rating S2=60 | kw | AC4.5×2 |
| 6.2 | Lift motor, rating S3=15% | kw | AC10.6 | |
| 6.4 | Lead-acid battery voltage/nominal capacity | V/Ah | 48/700 |
