Description

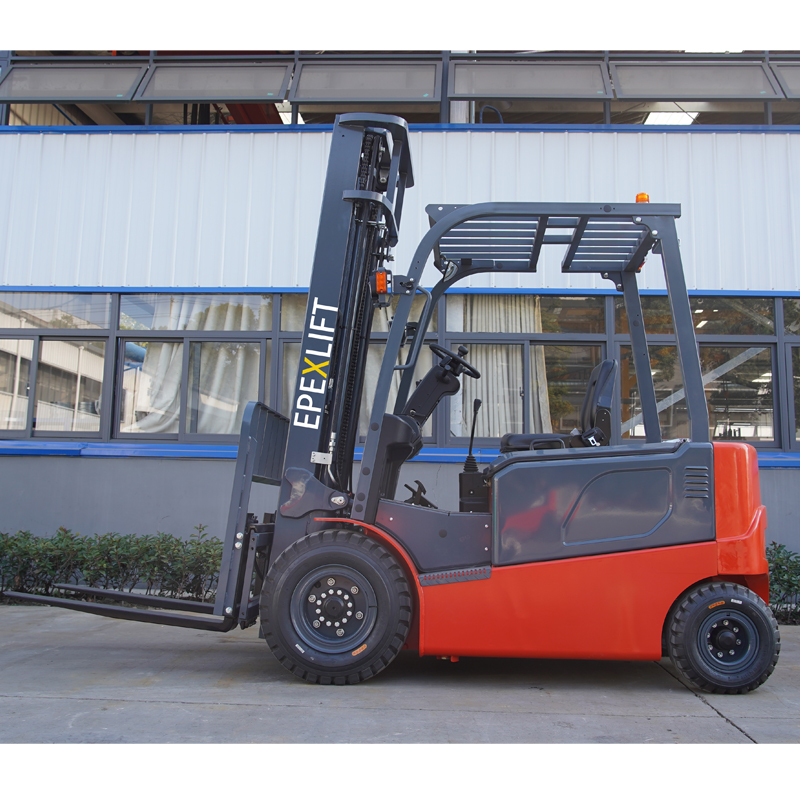

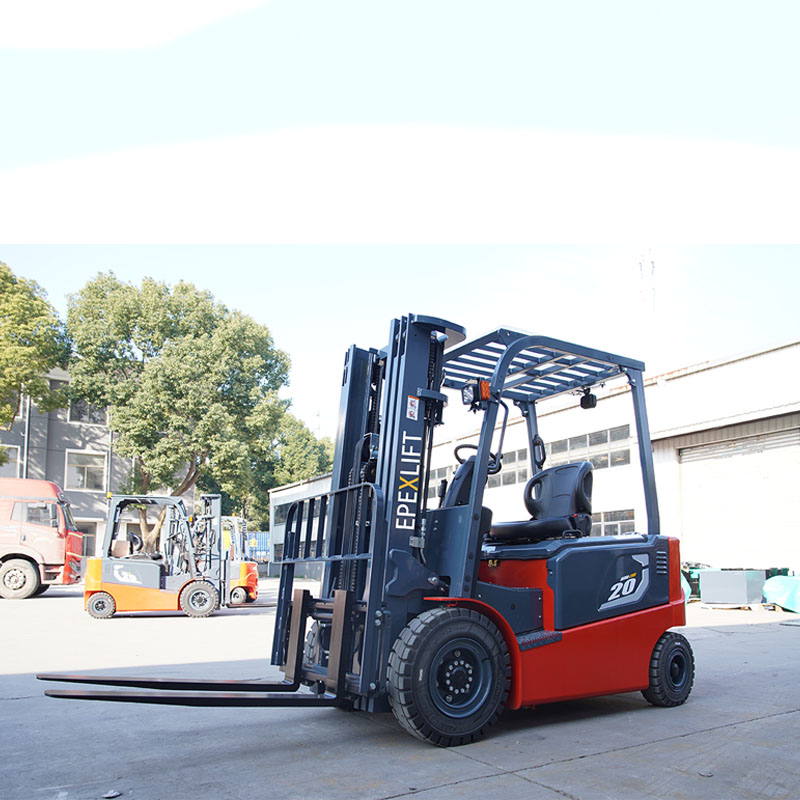

Four Wheels Electric Forklifts Truck 1500-2500Kgs
- Brand : Epexlift
- Model:E-MK
- load capacity: 1500ks ,2000kgs, 2500kgs
- lifting height :from 2.5 m to 7m
Epexlift electric counterbalanced forklifts Truck adopts battery power, delivering outstanding performance, featuring a full AC drive system, steel side panels, side-mounted multi-valve operation, high travel speeds, strong gradeability, and energy-efficient, eco-friendly operation.
The 48V 1.5-ton to 2.5-ton electric d forklifts offer comprehensive functionality. Utilizing full AC motor technology with high-torque motors and larger-capacity batteries, they meet diverse operational demands. Their refined ergonomic design provides users with an enhanced driving experience.
| 1.2 | Model | E-MK | E-MK | E-MK | ||
| 1.3 | Power type | Battery | Battery | Battery | ||
| 1.4 | Operation | Seated | Seated | Seated | ||
| 1.5 | Load capacity | Q(kg) | 1500 | 2000 | 2500 | |
| 1.6 | Load center distance | C(mm) | 500 | 500 | 500 | |
| Wheel | 3.1 | Tyre type | Pneumatic | Pneumatic | Pneumatic | |
| 3.2 | Tyre size, front | 6.50-10-10PR | 7.00-12-14PR | 7.00-12-14PR | ||
| 3.3 | Tyre size, rear | 16×6-8-10PR | 18×7-8-14PR | 18×7-8-14PR | ||
| 3.4 | Wheels,number front/rear (X=driven) | 2X/2 | 2X/2 | 2X/2 | ||
| Dimension | 4.1 | Mast tilt angle front/rear | α/β(°) | 6/10 | 6/10 | 6/10 |
| 4.2 | Mast retracted height | h1(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | |
| 4.3 | Free Lift height | h2(mm) | 145 | 150 | 150 | |
| 4.4 | lifting height | h3(mm) | 3000 | 3000 | 3000 | |
| 4.5 | Mast extended height | h4(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | |
| 4.6 | Overhead guard height | h6(mm) | 2125 | 2150 | 2150 | |
| 4.7 | Seat index point height | h7(mm) | 1100 | 1130 | 1130 | |
| 4.8 | Towing pin height | h10(mm) | 260 | 250 | 250 | |
| 4.9 | Overall length | L1(mm) | 3297 | 3500 | 3500 | |
| 4.10 | Body to fork surface length | L2(mm) | 2227 | 2430 | 2430 | |
| 4.11 | Overall width | b1/b2(mm) | 1120 | 1160/1140 | 1160/1140 | |
| 4.12 | Fork dimensions | l/e/s(mm) | 1070/100/35 | 1070/122/40 | 1070/122/40 | |
| 4.13 | Installation level (IS02328) | 2A | 2A | 2A | ||
| 4.14 | Fork carriage width | b3(mm) | 1040 | 1040 | 1040 | |
| 4.15 | Fork outside spread | b5(mm) | 1040～200 | 1000～244 | 1000～244 | |
| 4.16 | Ground clearance below mast | m1(mm) | 100 | 120 | 120 | |
| 4.17 | Ground clearance,body | m2(mm) | 110 | 125 | 125 | |
| 4.19 | Aisle width with pallet 800*1200mm, C=600mm | mm | 3790 | 3950 | 3950 | |
| 4.21 | Turning radius | Wa(mm) | 1940 | 2100 | 2100 | |
| 5.1 | Travelling speed, laden/unladen | km/h | 14.5/15 | 14.5/15 | 14.5/15 | |
| 5.3 | Lift speed, laden/unladen | mm/s | 365/440 | 290/440 | 290/440 | |
| 5.4 | Lowering speed, laden/unladen | mm/s | 400/400 | 400/400 | 400/400 | |
| 5.5 | Maximum traction force, laden/unladen | N | 11000 | 14000 | 14000 | |
| 5.6 | Gradeability, laden/unladen (S2-2min) | % | 15/25 | 17/26 | 15/25 | |
| 6.3 | Lead-acid battery voltage/nominal capacity | V/Ah | 48/480 | 48/500 | 48/500 |
