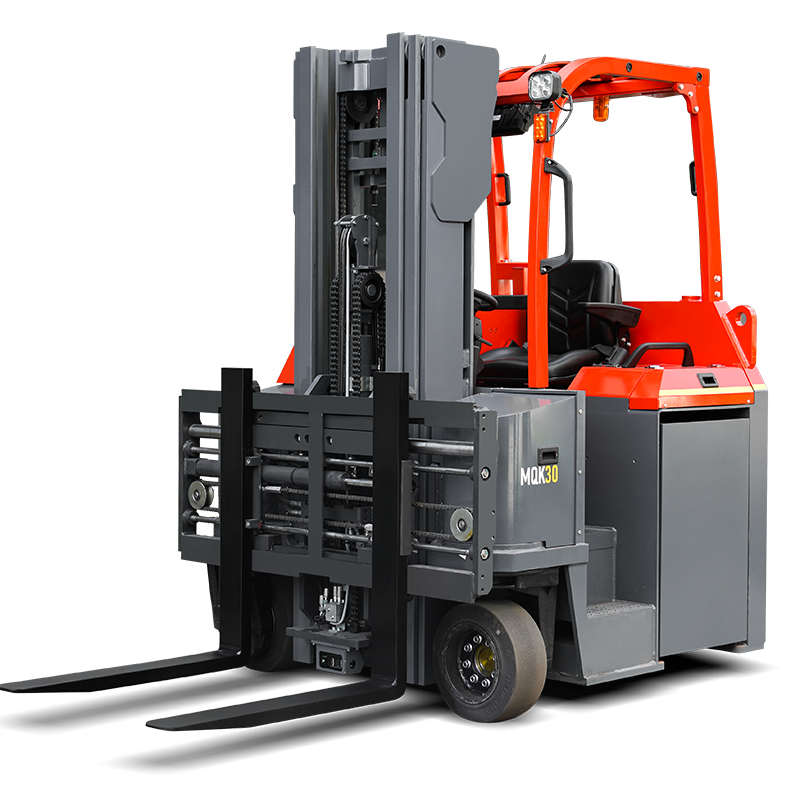

Seated Counterbalance Multi-directional Forklift 3000-4000kgs
Seated Counterbalanced Multi-directional Forklift 3000-4000kgs
The seated counterbalanced multi-directional forklift offers multiple travel modes, including straight travel, side shift, diagonal travel, right-angle turns, and in-place rotation. This equipment handles long materials such as metal profiles, aluminum, and lumber. Its compact body design facilitates passage through narrow doorways and enables more convenient operation.
- Brand : Epexlift
- Model: E-MQK
- Load Capacity: 3000-4000kgs
- Center: 600mm
- Max. Lifting Height: 8000m
About US
Epexlift is dedicated to being your most trusted partner in intelligent logistics and material handling. Guided by our core promise of “Simplifying Your Move,” we deliver reliable and efficient forklift solutions that make every material handling task both effortless and productive. Our comprehensive equipment portfolio spans Class I to Class V, offering a full selection from electric forklifts, pallet trucks, and order pickers, Very Narrow Aisle trucks,multidirection forklifts along with robust LPG and diesel models for demanding outdoor applications—ensuring we can meet virtually any operational requirement.
Contact US
Email：sales@epexlift.com
Phone：+86135 1497 1047
WhatsApp：+86135 1497 1047
Get A Quick Requests Now
HICODA will constantly satisfy worldwide customers with professional warehouse solutions, and we are ready to be your trusted partner.
Contact Us
-
Phone:+86135 1497 1047
-
E-mail: sales@epexlift.com
Description
Seated Counterbalanced Multi-directional Forklift 3000-4000kgs
- Brand : Epexlift
- Model: E-MQK
- Load Capacity: 3000kgs-4000kgs
- Center: 600mm
- Max. Lifting Height: 8000m
The seated counterbalanced multi-directional forklift offers multiple travel modes, including straight travel, side shift, diagonal travel, right-angle turns, and in-place rotation. This equipment handles long materials such as metal profiles, aluminum, and lumber. Its compact body design facilitates passage through narrow doorways and enables more convenient operation.
| 1.2 | Model | E-MQK30 | E-MQK40 | |
| 1.3 | Power Type | Battery | Battery | |
| 1.4 | Operation type | Seated | Seated | |
| 1.5 | Load capacity | Q(kg) | 3000 | 4000 |
| 1.6 | Load center distance | C(mm) | 500 | 600 |
| 2.1 | Service Weight(incl.battery) | kg | Refer to the mast specification | Refer to the mast specification |
| 3.1 | Tyre type | Solid rubber Tyre | Solid rubber | |
| 3.2 | Tyre size, front | 18×9×12.125/457×229×308 | 18×9×12.125/457×229×308 | |
| 3.3 | Tyre size, rear | 15×6×11.25/φ381×152×285.8 | 18×9×12.125/457×229×308 | |
| 3.5 | Wheels,number front/rear (X=driven) | 2X/2 | 2X/1X | |
| 3.6 | Track width, front | b10(mm) | 1170 | 1280 |
| 4.1 | Mast tilt angle,front/rear | α/β(°) | 1/3.5 | 1/3.5 |
| 4.2 | Mast retracted height | h1(mm) | Refer to the mast specification | Refer to mast parameter and self-weight table |
| 4.3 | Free lift height | h2(mm) | Refer to the mast specification | Refer to mast parameter and self-weight table |
| 4.4 | Lift height | h3(mm) | Refer to the mast specification | Refer to mast parameter and self-weight table |
| 4.5 | Mast extended height | h4(mm) | Refer to the mast specification | Refer to mast parameter and self-weight table |
| 4.7 | Overhead guard height (with/without light) | h6(mm) | 2650/2515 | 2400/2535 |
| 4.8 | Seat height | h7(mm) | 1372 | 1333 |
| 4.19 | Overall length | l1(mm) | 2520 | 3073 |
| 4.20 | Length to fork face | l2(mm) | 1600 | 1873 |
| 4.21 | Overall width | b1(mm) | 1640 | 1650 |
| 4.22 | Fork dimensions | l/e/s(mm) | 920/125/50 | 1200/150/50 |
| 4.24 | Fork carriage width | b3(mm) | 1600 | 1650 |
| 4.25 | Fork outside spread | b5(mm) | 350～1450 | 550～1630 |
| 4.31 | Ground clearance(laden，under mast) | m1(mm) | 70 | 111 |
| 4.34 | Aisle width | mm | Refer to the stacking aisle specification | Refer to the stacking aisle specification |
| 4.34.1 | Mini. stacking asile width（1000×1200 cross fork） | mm | 3100 | |
| 4.34.2 | Mini. stacking asile width（800×1200 along fork） | mm | 2940 | |
| 4.4 | Unladen in-situ rotation diameter（Mini/Max.Fork outside spread) | Wk(mm) | 2800/2900 | 3500/3350 |
| 4.5 | Sideways travelling speed, laden/unladen | km/h | 7～8 | 8～10 |
| 4.6 | Straight travelling speed, laden/unladen | km/h | 9～10 | 8～10 |
| 5.2 | Lifting speed, laden/unladen | mm/s | 220/350 | 260/360 |
| 5.3 | Lowering speed, laden/unladen | mm/s | 360/260 | 270/260 |
| 5.4 | Max straight driving gradeability, laden/unladen (S2-5min) | %(tanθ ) | 10/10 | 8/10 |
| 5.5 | Max sideways driving gradeability, laden/unladen (S2-5min) | %(tanθ ) | 10/10 | 8/10 |
| 5.10 | Service brake | Electromagnetic | Electromagnetic | |
| 5.2 | Lithium battery voltage/capacity(Standard) | V/Ah | 48/600 | 80/600 |
| 5.3 | Lithium battery weight | kg | 320 | 450 |
