Description

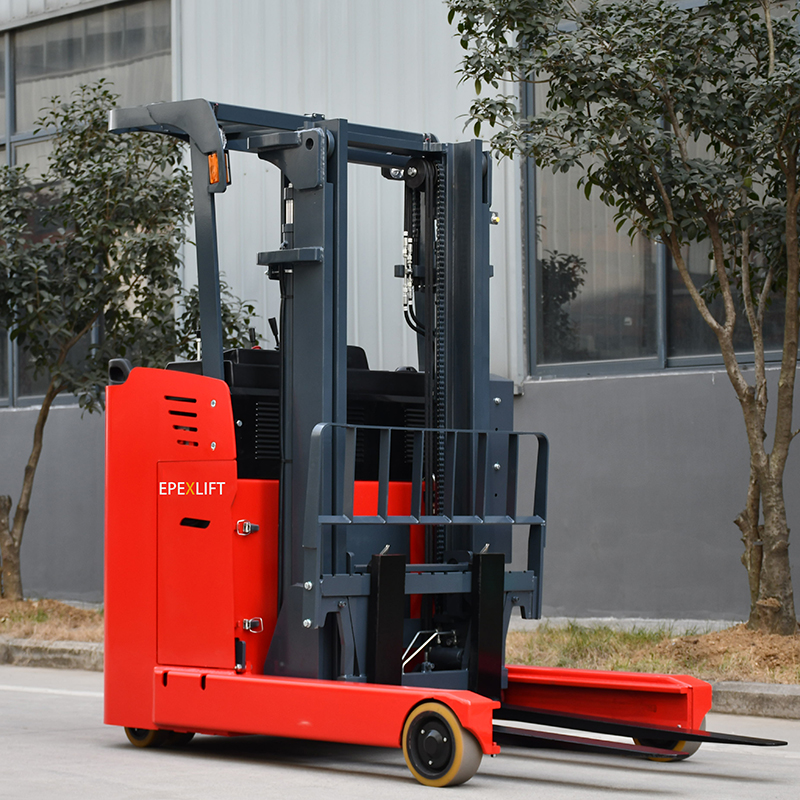

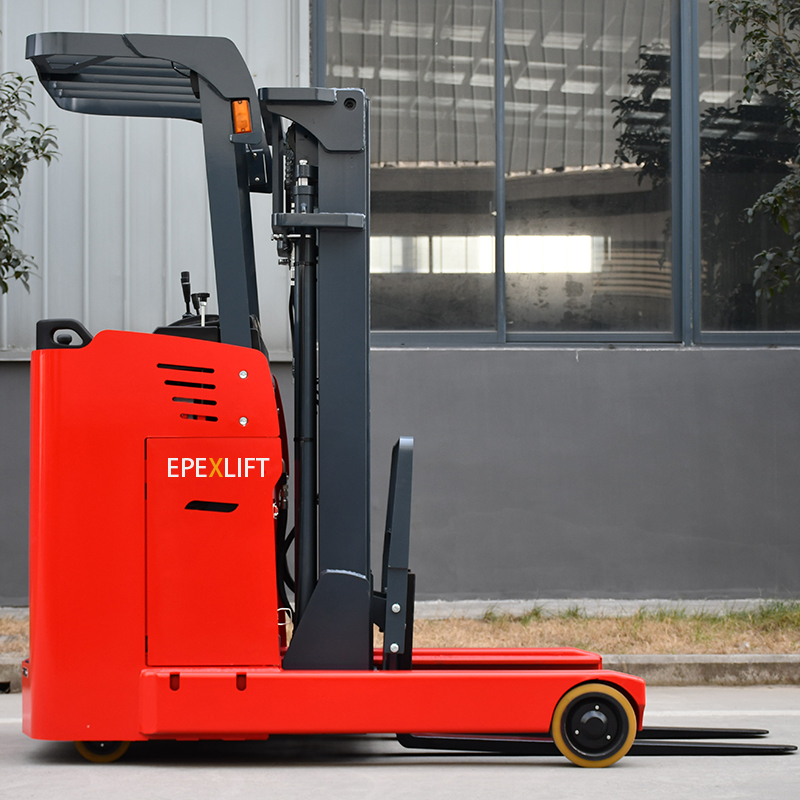

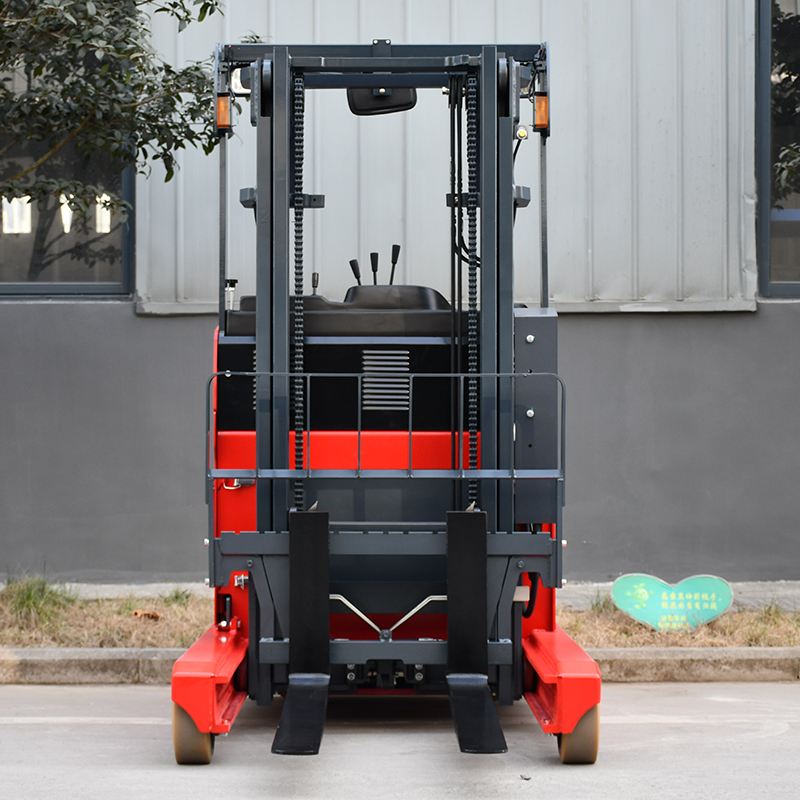

Stand-on Electric Reach Truck 1200-3000kgs
- Model:E-MF
- Capacity: 1.2ton, 1,5tons, 1.8ton, 2tons, 2.5tons,3 tons
- Lifting Height:3m-8m
- Load center 500mm
Stand-on Reach trucks are suitable for stacking on medium- and high-level racks. Their three-point support structure provides greater stability. Despite narrow aisles, they offer stable load-bearing capacity and are the most commonly used stacking trucks in warehouses.
| 1.2 | Model | E-MF15 | E-MF12 | E-MF18 | E-MF20 | E-MF25 | E-MF30 | |
| 1.3 | Power type | Battery | Battery | Battery | Battery | Battery | Battery | |
| 1.4 | Operation | Stand on | Stand on | Stand on | Stand on | Stand on | Stand on | |
| Operate method | multi – valve | multi – valve | multi – valve | multi – valve | multi – valve | multi – valve | ||
| 1.5 | Load capacity | Q(t) | 1.5 | 1.2 | 1.8 | 2.0 | 2.5 | 3.0 |
| 1.6 | Load center distance | C(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| 2.1 | Service weight(incl. battery) | kg | 2900 | 2250 | 2950 | 3000 | 3600 | 3675 |

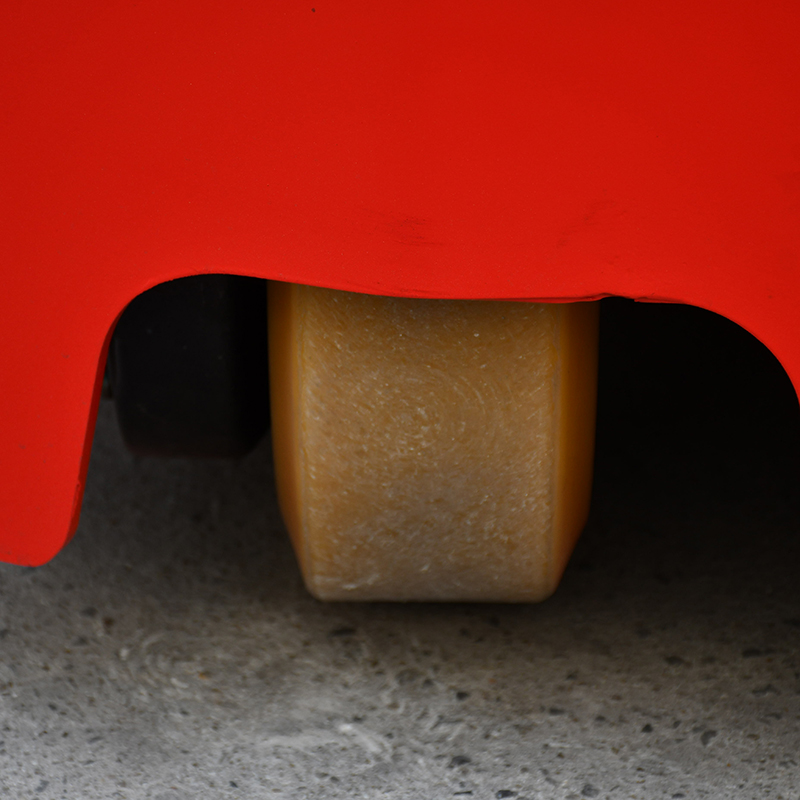

| 3.1 | Tyre type,front/rear | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | |
| 3.2 | Tyre size, front | mm | Φ254×104 | Φ210×85 | Φ254×104 | Φ254×104 | Φ267×135 | Φ267×135 |
| 3.3 | Tyre size, rear | mm | Φ343×108 | Φ230×110 | Φ343×108 | Φ343×108 | Φ380×165 | Φ380×165 |
| 3.4 | Additional wheel | mm | Φ180×76 | Φ180×76 | Φ180×76 | Φ180×76 | Φ204×76 | Φ204×76 |
| 3.5 | Wheels,number front/rear (X=driven) | 2/1X+2 | 2/1X+2 | 2/1X+2 | 2/1X+2 | 2/1X+2 | 2/1X+2 | |
| 4.1 | Fork tilt angle front/rear | α/β(°) | 3/5 | 3/5 | 3/5 | 3/5 | 2/6 | 2/6 |
| 4.2 | Mast retracted height | h1(mm) | 2142 | 2080 | 2142 | 2142 | 2292 | 2292 |
| 4.3 | Free Lift height | h2(mm) | 1172 | 1110 | 1172 | 1172 | 1230 | 1230 |
| 4.4 | Lift height | h3(mm) | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| 4.5 | Mast extended height | h4(mm) | 5460 | 5455 | 5460 | 5460 | 5460 | 5550 |
| 4.6 | Overhead guard height | h6(mm) | 2250 | 2250 | 2250 | 2250 | 2260/2300 | 2260/2300 |
| 4.7 | Pedal height | h7(mm) | 300 | 300 | 300 | 300 | 350 | 350 |
| Side shift travel | ±50 | ±50 | ±50 | ±50 | ±50 | ±50 | ||
| 4.8 | Support arms height | h8(mm) | 285 | 246 | 285 | 285 | 300 | 300 |
| 4.9 | Overall length (including forks) {2} | l1(mm) | 2283 | 2106 | 2336 | 2336 | 2429 | 2534 |
| 4.10 | Overall length (without forks) | l7(mm) | 1707 | 1570 | 1847 | 1907 | 2092 | 2292 |
| 4.11 | Length to fork face | l2(mm) | 1213 | 1036 | 1266 | 1266 | 1359 | 1464 |
| 4.12 | Overall width | b1/b2(mm) | 1090/1170 | 1090/1000 | 1090/1170 | 1090/1170 | 1190/1270 | 1190/1270 |
| 4.13 | Fork dimensions | l/e/s(mm) | 1070/100/35 | 1070/100/35 | 1070/100/35 | 1070/100/35 | 1070/122/40 | 1070/125/45 |
| 4.14 | Backrest width | b3(mm) | 1088 | 1088 | 1088 | 1088 | 1088 | 1148 |
| 4.15 | Fork outside spread | b5(mm) | 222-750【4】 | 222-750 | 244-772 | 244-772 | 244-772 | 250-750 |
| 4.16 | Support arms inner width | b4(mm) | 856 | 822 | 856 | 856 | 892 | 892 |
| 4.17 | Reach distance | l4(mm) | 525 | 570 | 617 | 677 | 775 | 875 |
| 4.18 | Ground clearance below mast | m1(mm) | 82 | 80 | 82 | 82 | 82 | 82 |
| 4.19 | Aisle width with pallet 1000*1200mm, C=500mm | Ast(mm) | 2682 | 2521 | 2757 | 2770 | 2917 | 3066 |
| 4.21 | Turning radius | Wa(mm) | 1594 | 1492 | 1731 | 1784 | 1995 | 2192 |
| 5.1 | Travelling speed, laden/unladen | km/h | 9/10 | 6/7 | 9/10 | 9/10 | 9/10 | 8/10 |
| 5.2 | Lift speed, laden/unladen | m/s | 0.2/0.35【5】 | 0.13/0.19【4】 | 0.22/0.39【3】 | 0.2/0.39【3】 | 0.22/0.3【4】 | 0.2/0.3【2】 |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.32/0.28【5】 | 0.3/0.28【4】 | 0.34/0.33【3】 | 0.34/0.33【3】 | 0.31/0.26【4】 | 0.31/0.26【2】 |
| 5.4 | Mast movement speed, forward/retracted | m/s | 0.18 | 0.18 | 0.18 | 0.18 | 0.16 | 0.16 |
| 5.5 | Gradeability, laden/unladen (S2-5min) | % | 10 | 10 | 10 | 10 | 10 | 10 |
| 5.6 | Service brake | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | |
| 6.3 | Battery voltage/nominal capacity | (V)/(Ah) | 48/300 | 24/350 | 48/300 | 48/300 | 48/400 | 48/400 |
| 6.4 | Battery weight | kg | 490 | 300 | 490 | 490 | 640 | 640 |
| 6.5 | Type of steer control | EPS | EPS | EPS | EPS | EPS | EPS | |
| 7.1 | Battery replacement method | Side pull | Side pull | Side pull | Side pull | Side pull | Side pull | |
| Noise level at the driver’s ear | dB(A) | 75 | 75 | 75 | 75 | 75 | 75 |
